Plate Cart - 1190 x 980 mm
Plate Cart - 1190 x 980 mm
Plate Cart - 1190 x 980 mm
Plate Cart - 1190 x 980 mm
Plate Cart - 1190 x 980 mm
Q-100-1140

Plate Cart - 1190 x 980 mm

Push cart used for the transportation of plates and panels. Equipped with a handlebar and four nylon casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 47 inch

Width: 39 inch

Load capacity: 661 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

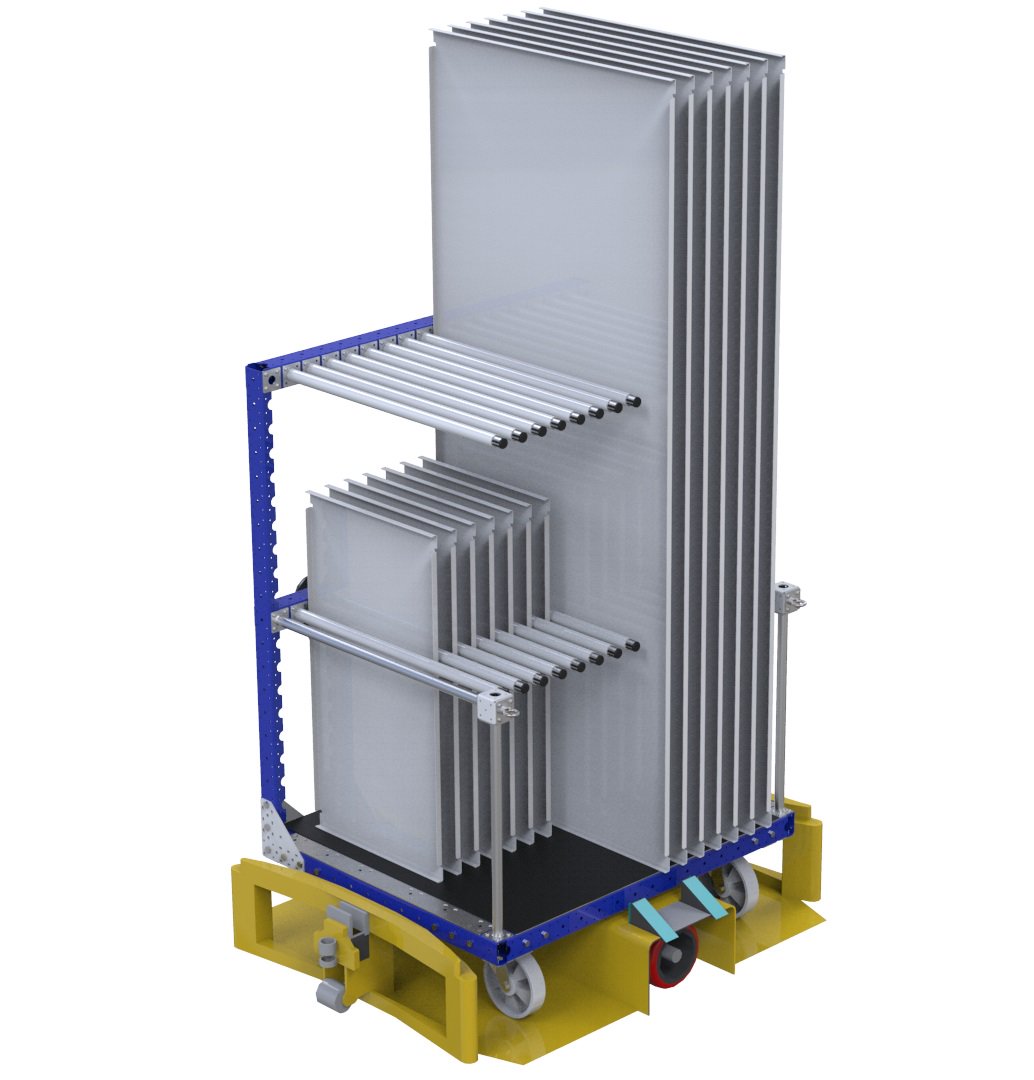

Push cart used for the transportation of tall plates and panels. A rubber carpet covers the base of the cart and the tubes by a protective plastic to avoid damaging the parts. The parts are kept in place during transportation with a cord placed between the two lifting eyes in the front. The cart is also equipped with a handlebar and four nylon casters making it very easy to operate manually.

Parts included
FlexTube™ 630 mm 2 Q-000-1312
FlexTube™ 840 mm 2 Q-000-1398
FlexQube 4 Q-001-1078
FlexPlate™ 14 Q-002-1001
Flexplate™ M10 35 Q-002-1162
Flexplate™ 30,5 mm hole 30 Q-002-1320
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Polyamide Caster 200 mm without Brake 4 Q-004-1352
Floor Brake LTL - 200 mm 1 Q-004-1359
Spring Threaded Tube Connectors 30 Q-005-0469
Triangle Joint 4 Q-005-0483
Plastic Tube - 837 mm 30 Q-005-0754
Wheel Attachment Box 4 Q-005-1079
Tube end plug GN 991-D30 30 Q-005-1118
64 mm FlexBeam™ Collet 9 Q-005-1426
M10 Lifting Eye Bolt - 17 mm 2 Q-006-0020
Hex Head - M10 x 25 mm 32 Q-006-1041
Locking Nut M10 59 Q-006-1042
Washer M10 3 Q-006-1043
Hex Head - M10 x 95 mm 1 Q-006-1088
Hex Head - M10 x 90 mm 8 Q-006-1132
Hex Head - M10 x 30 mm 16 Q-006-1161
Extra low head [1,5 mm] M10x40 mm 30 Q-006-1361
Self Tapping Screw M6 Torx H60 x 16 226 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 40 Q-006-1385
Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060
Top Plate - 1190 x 980 mm 1 Q-016-0681
FlexBeam™ - 1120 mm 10 Q-020-1120
FlexBeam™ STS FE - 980 mm 2 Q-021-0980
Outer Tube (No plate) - 910 mm 30 Q-025-0910
