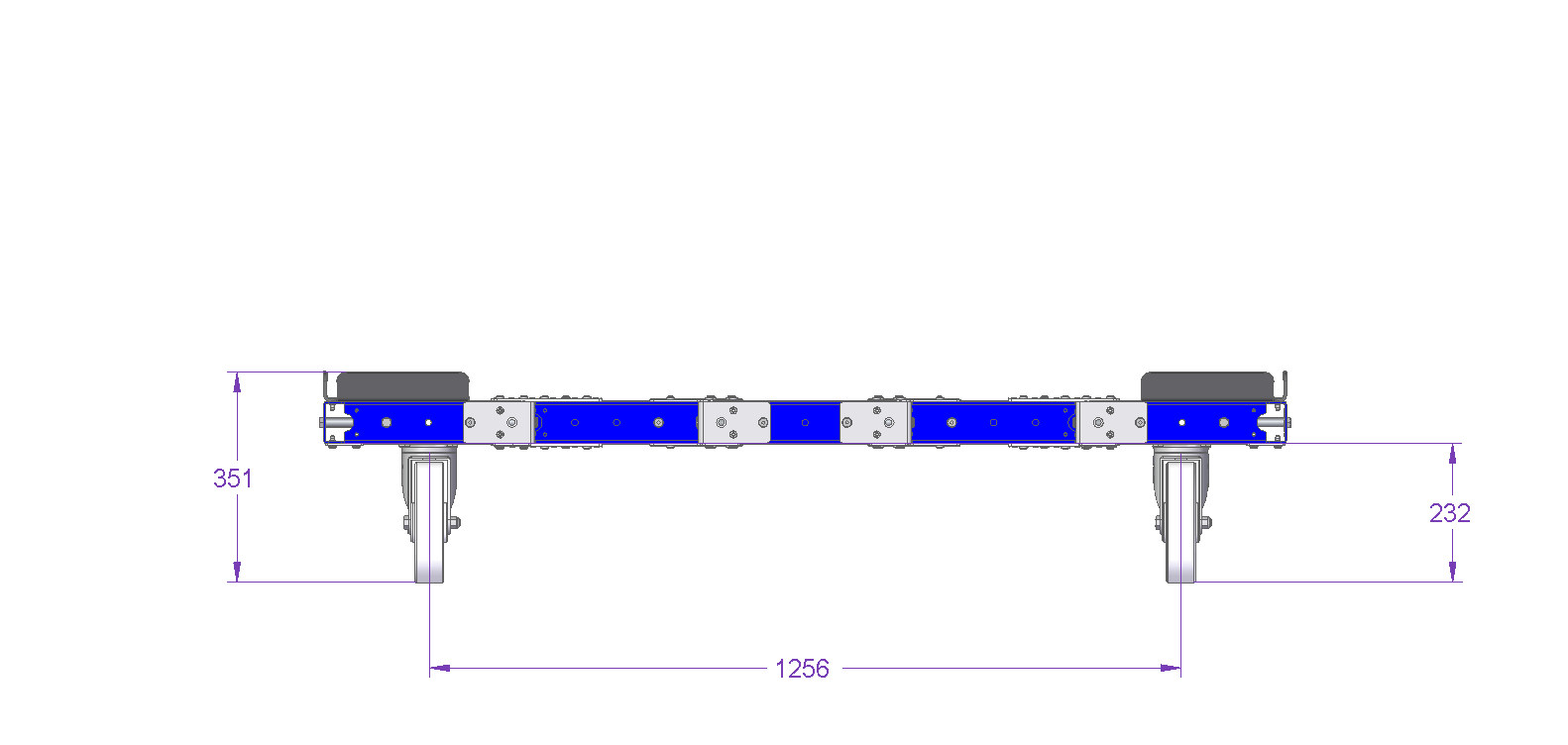

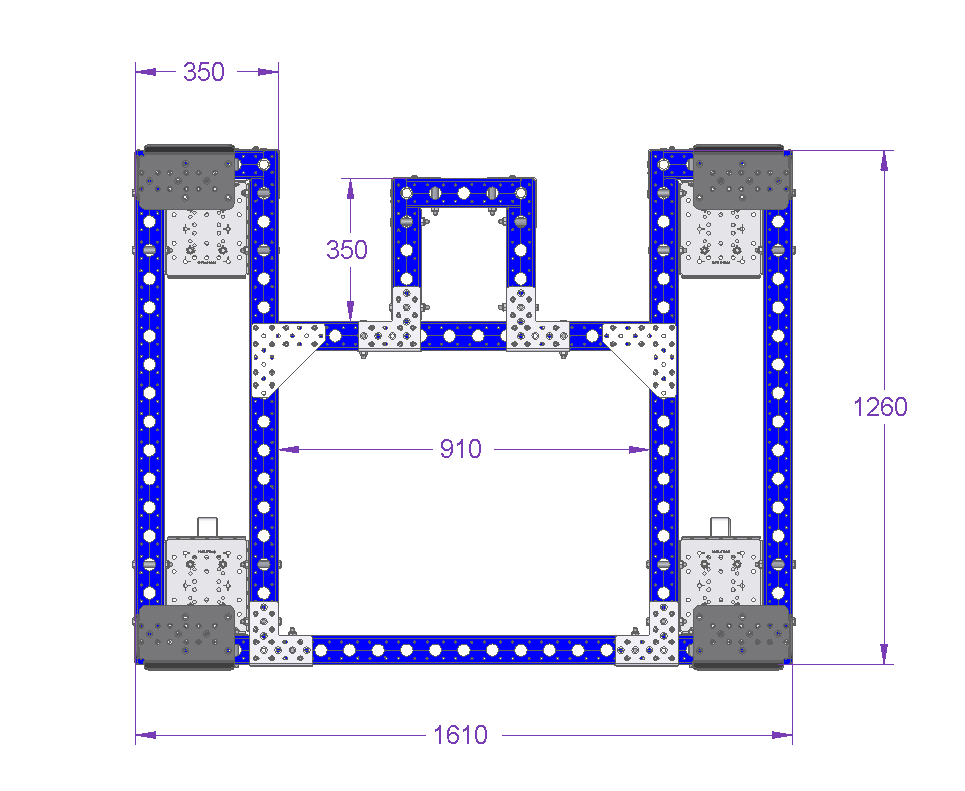

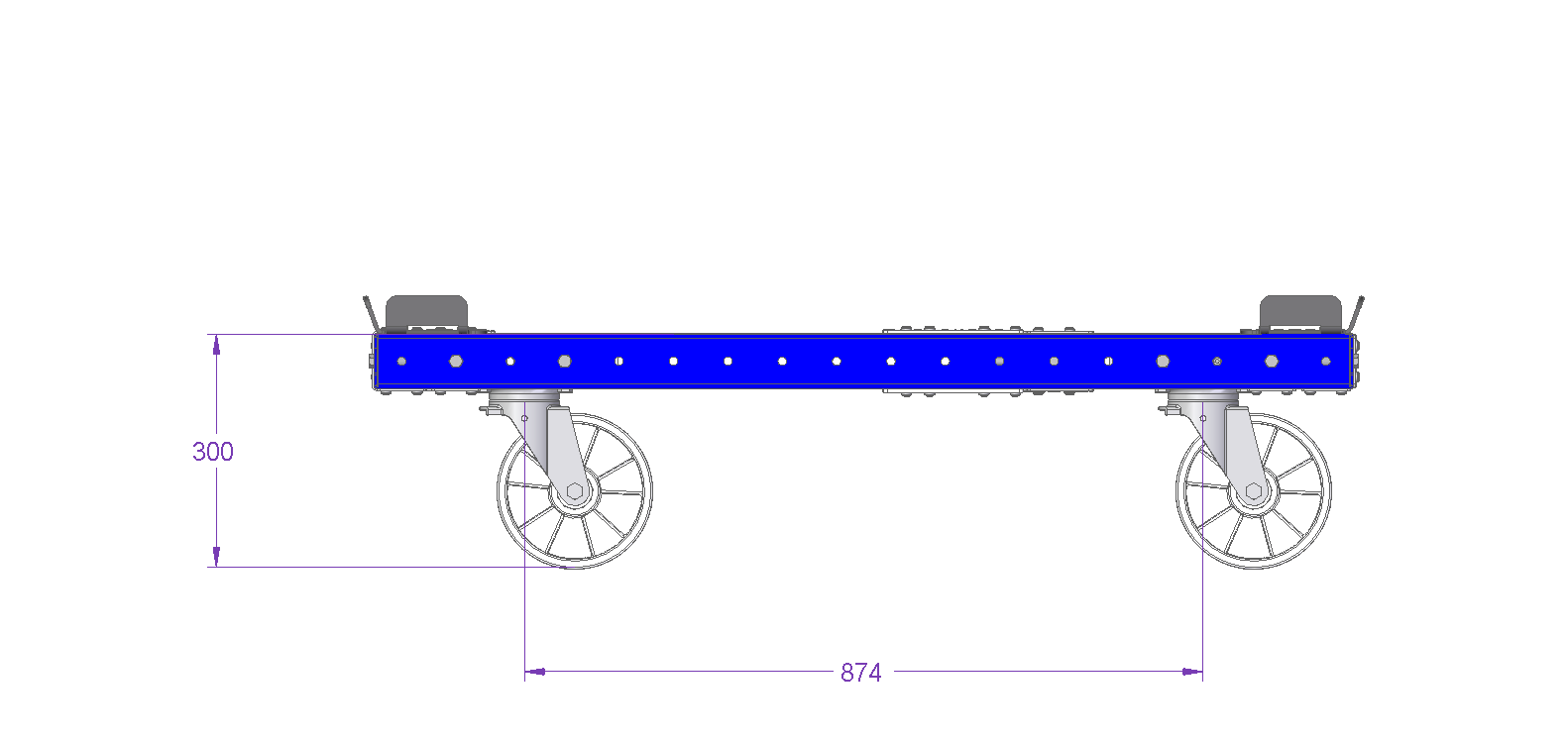

Pallet Cart With Picking Area - 1610 x 1260 mm
Pallet Cart With Picking Area - 1610 x 1260 mm
Pallet Cart With Picking Area - 1610 x 1260 mm
Pallet Cart With Picking Area - 1610 x 1260 mm
Q-100-0940

Pallet Cart With Picking Area - 1610 x 1260 mm

Pallet cart with in-built picking area.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 63 inch

Load capacity: 705 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This pallet cat has been specifically designed to help improve ergonomics. This pallet cart is designed to have a picking area for the operator, the two sections where the cart goes aids in this.

Parts included
FlexBeam™ - 1540 mm 2 Q-001-1295
FlexBeam™ 910 mm 2 Q-001-1304
FlexBeam™ 280 mm 6 Q-001-1313
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 350 mm FE 2 Q-001-1412
FlexBeam™ 280 mm FE 2 Q-001-1413
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 16 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 8 Q-002-1162
Polyamide Caster 200 mm without Brake 4 Q-004-1352
Pallet Guide Wheel Attachment Right 2 Q-005-0062
Pallet Guide Wheel Attachment Left 2 Q-005-0063
Triangle Joint 4 Q-005-0483
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 26 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Hex Head - M10 x 25 mm 16 Q-006-1041
Locking Nut M10 54 Q-006-1042
Hex Head - M10 x 90 mm 20 Q-006-1132
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 200 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 24 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
