Pallet Cart 3850 x 1260 mm
Pallet Cart 3850 x 1260 mm
Pallet Cart 3850 x 1260 mm
Pallet Cart 3850 x 1260 mm
Q-007-3075

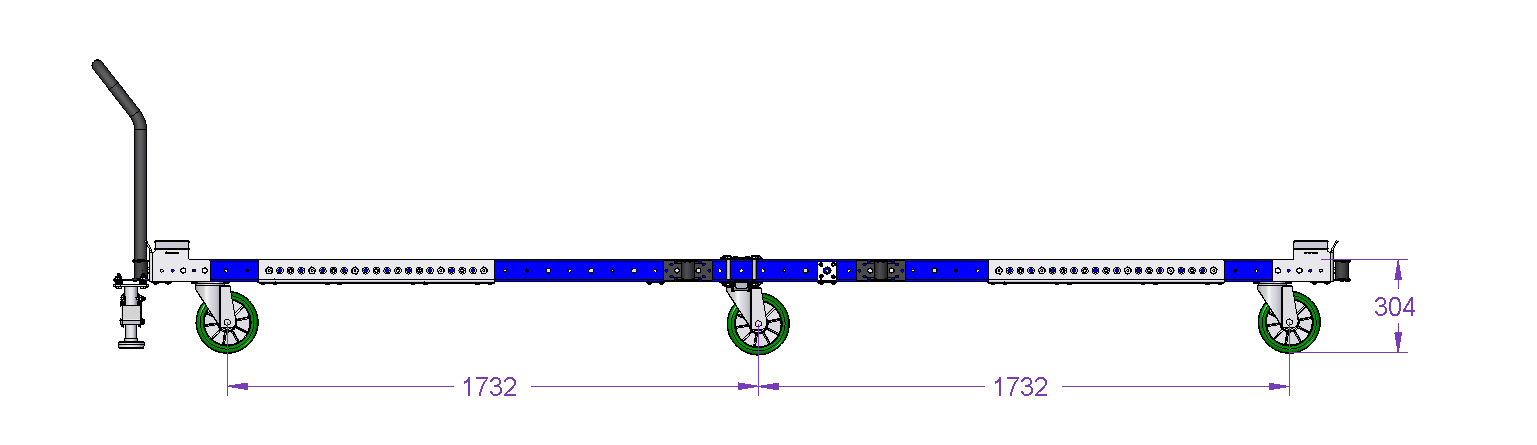

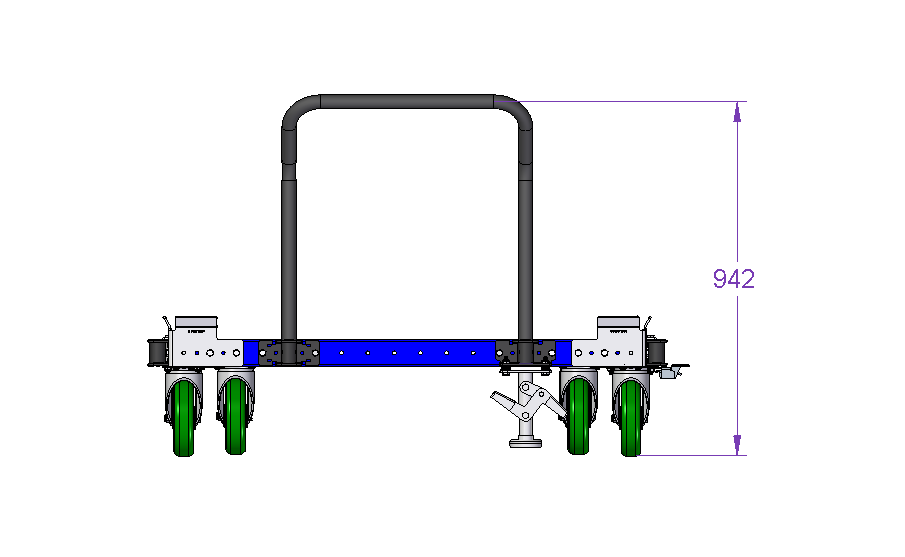

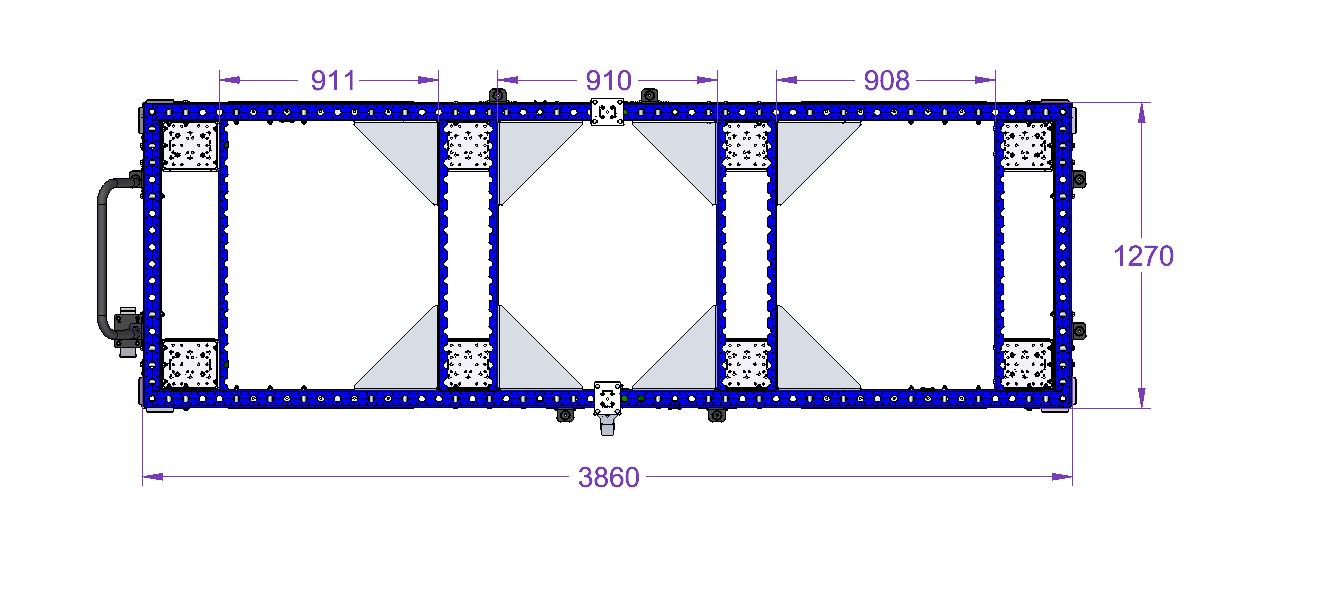

Pallet Cart 3850 x 1260 mm

Custom designed pallet cart for transporting long materials.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 152 inch

Load capacity: 2205 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

This pallet cart without flat deck is designed for containers. This industrial pallet cart is equipped with a removable ergonomic handlebar for easier manual transportation. It is also equipped with six polyurethane casters for easier tracking.

Parts included
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ 560 mm 4 Q-001-1309
FlexBeam™ 1120 mm FE 8 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 16 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 6 Q-004-1100
Floor Brake LTL - 200 mm 1 Q-004-1359
Directional Lock 8P-DL 1 Q-004-1500
Wheel Attachment Box - 5 mm 8 Q-005-0046
Reinforcement Plate - 770 mm 4 Q-005-1112
Triangle Corner Plate 8 Q-005-1145
64 mm FlexBeam™ Collet 62 Q-005-1426
Hex Head - M10 x 25 mm 48 Q-006-1041
Locking Nut M10 122 Q-006-1042
Washer M10 24 Q-006-1043
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 26 Q-006-1132
Countersunk MF6S - M10 x 90 mm 20 Q-006-1135
Hex Head - M10 x 40 4 Q-006-1208
Hex Head - M10 x 100 mm 20 Q-006-1302
Self Tapping Screw M6 Torx H60 x 16 136 Q-006-1384
Handlebar Attachment EUR 7 Q-015-0026
Handlebar / Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
Angle corner plate - 5 mm 4 Q-005-0227
