Q-100-0820

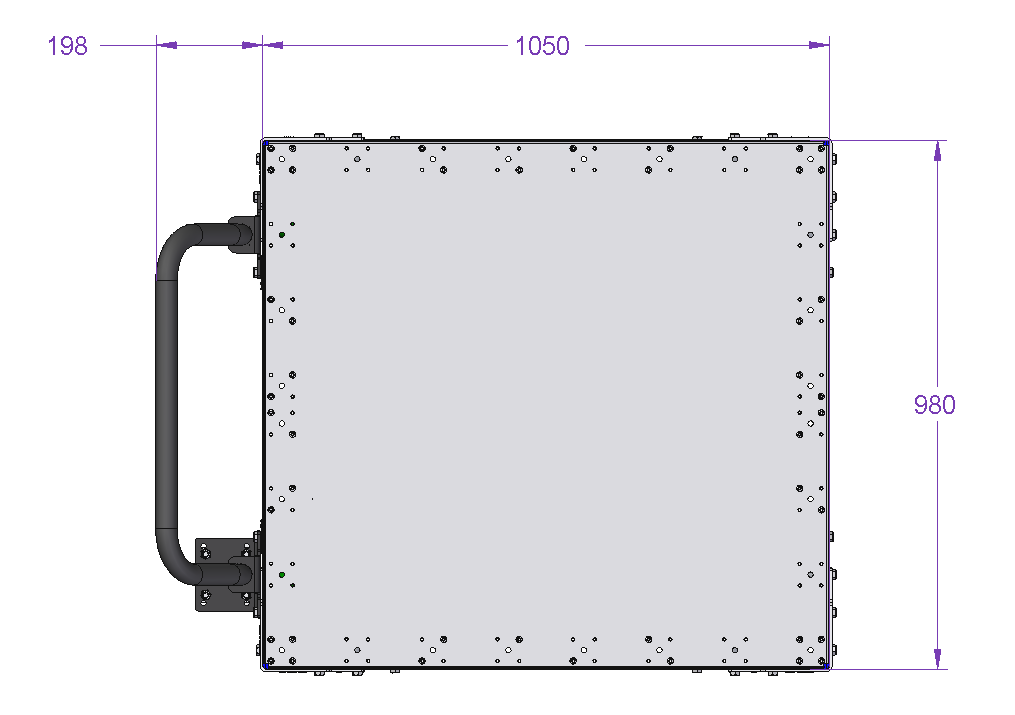

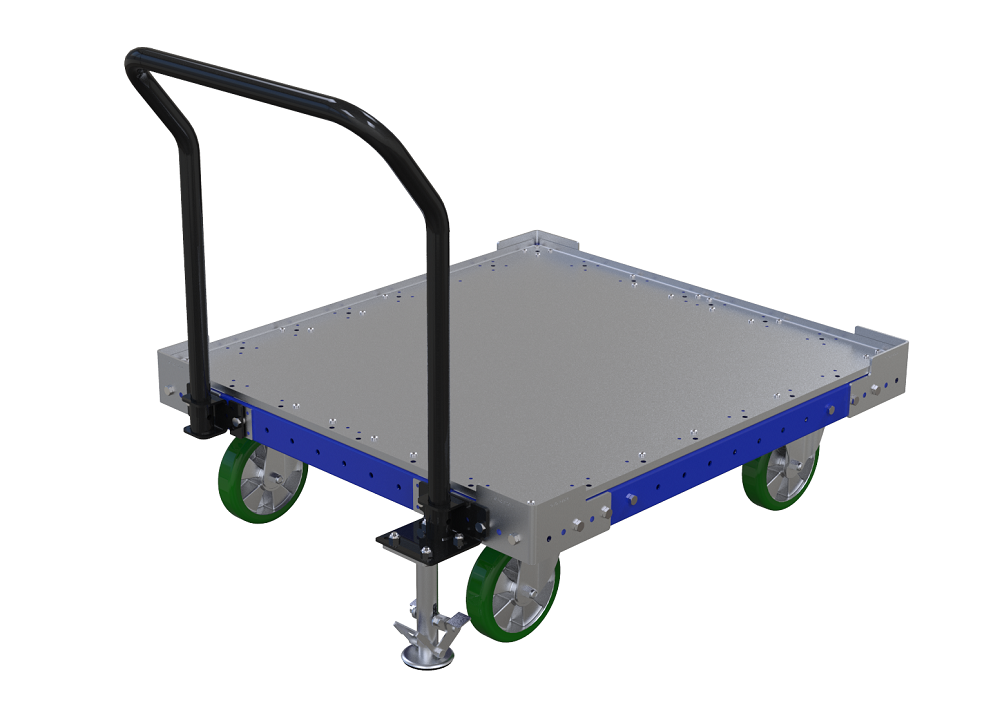

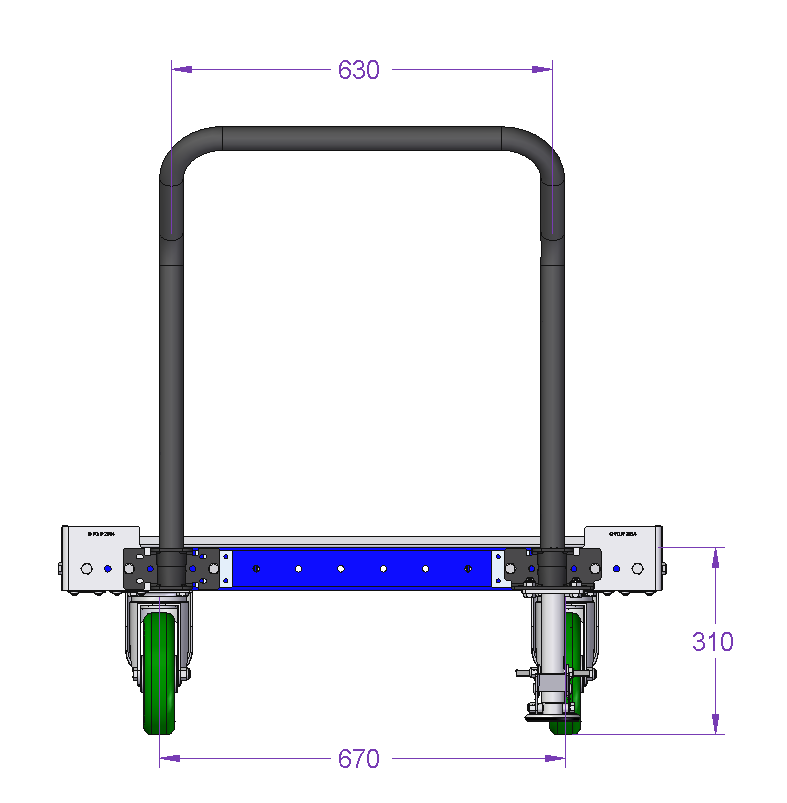

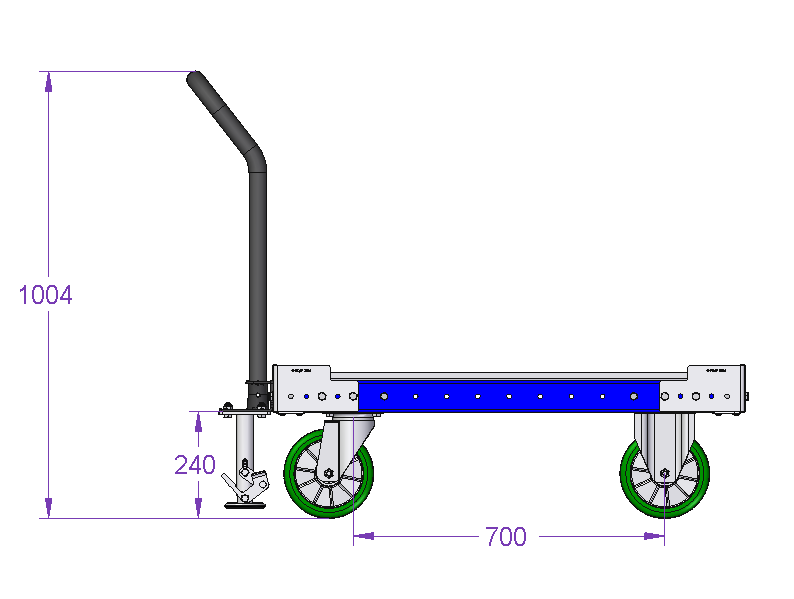

Pallet Cart - 1050 x 980 mm

Standard pallet cart designed for transporting pallets and containers.

Technical specifications

Category: Flat Deck

Industry: Automotive, Distribution, Industrial Machinery

Length: 41 inch

Width: 39 inch

Load capacity: 1653 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This pallet cart was designed to improve the transportation of pallets and containers. It is equipped with an ergonomic handlebar for manual transportation. It also comes equipped with an attached floor lock brake to keep the cart secure when not in use.

Parts included
FlexBeam™ 980 mm 4 Q-001-1303
FlexBeam™ 980 mm FE 2 Q-001-1403
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 14 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 12 Q-005-1426
Pallet Guide Heavy - 5 mm 4 Q-005-1645
Hex Head - M10 x 25 mm 32 Q-006-1041
Locking Nut M10 54 Q-006-1042
Washer M10 2 Q-006-1043
Hex Head - M10 x 95 mm 16 Q-006-1088
Hex Head - M10 x 90 mm 6 Q-006-1132
Self Tapping Screw M6 Torx H60 x 16 76 Q-006-1384
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate W Edge - 1050 x 980 mm 1 Q-016-0397
