Kit Cart with Telescopic Shelves
Kit Cart with Telescopic Shelves
Kit Cart with Telescopic Shelves
Kit Cart with Telescopic Shelves
Kit Cart with Telescopic Shelves
Q-007-1090

Kit Cart with Telescopic Shelves

AGV compatible three level extendable shelf cart. Equipped with four polyurethane swivel casters, two with brakes.

Technical specifications

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Load capacity: 705 lbs

Caster Type: Polyurethane

Length: 80 inch

Width: 33 inch

More info

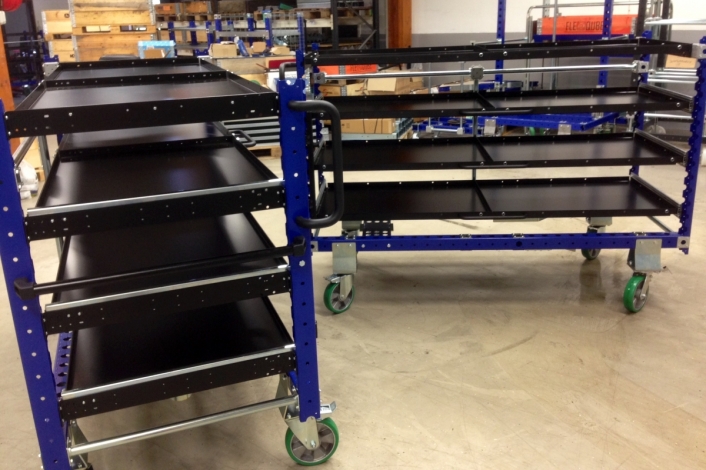

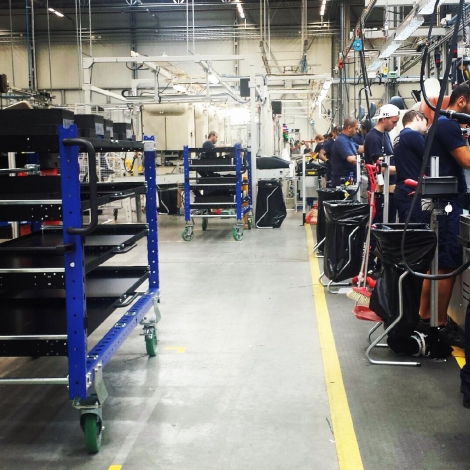

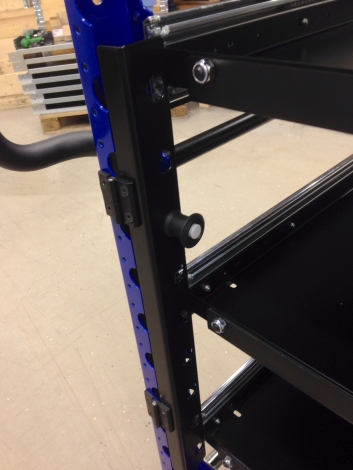

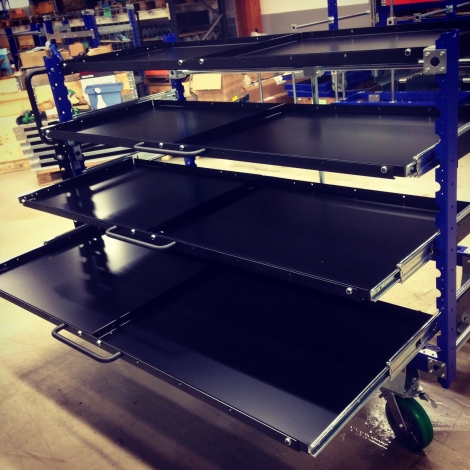

Three levels extendable shelf cart designed to be transported by an AGV. Each shelf is equipped with a handlebar and can be extended up to 100% of the shelf depth. The cart is equipped with four polyurethane swivel casters making it easy to maneuver in tight areas.

Parts included
FlexBeam™ 1120 mm 8 Q-001-1301
FlexBeam™ 840 mm 4 Q-001-1305
Telescopic Shelf Plate - 959 x 700 mm 8 Q-005-1319
Telescopic List 700 mm 6 Q-005-1517
FlexTube™ 910 mm 2 Q-000-1269
FlexTube™ 1050 mm 4 Q-000-1053
FlexTube™ 770 mm 1 Q-000-1265
FlexTube™ 700 mm 2 Q-000-1002
FlexQube 6 Q-001-1078
Telescopic Plate - 699 mm 8 Q-005-1317
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm with Brake 1 Q-004-1099
Polyurethane 200 mm Brake [for DL] 1 Q-004-1134
Directional Locking Plate 1 Q-004-1130
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M10 60 Q-006-1042
FlexPlate™ 30 Q-002-1001
Hex Head - M10 x 25 mm 16 Q-006-1041
Old Part: M6 x 12 mm Allen Head 300 Q-006-1080
Angled Plate - 1848 mm 8 Q-005-1318
Hinge GN237_50x50 2 Q-005-1320
Shelf lock plate 1 Q-005-1338
Door Lock Plate 1 Q-005-1351
Countersunk - M6 x 20 mm 4 Q-006-1049
M5 Locking Nut 100 Q-006-1021
