Flow Shelf Cart - 1050 x 1400 mm
Flow Shelf Cart - 1050 x 1400 mm
Flow Shelf Cart - 1050 x 1400 mm
Flow Shelf Cart - 1050 x 1400 mm
Flow Shelf Cart - 1050 x 1400 mm
Q-100-1400

Flow Shelf Cart - 1050 x 1400 mm

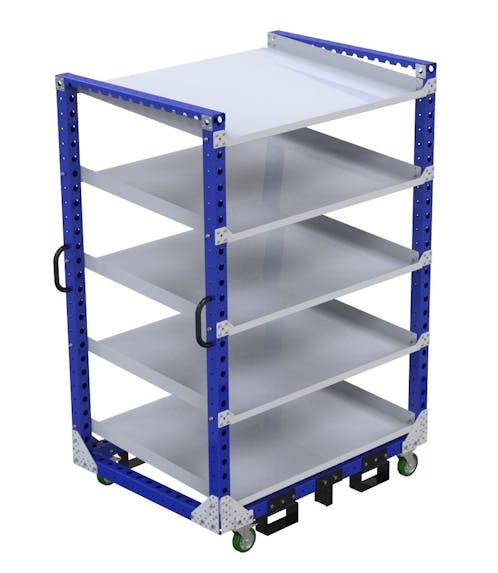

Flow shelf cart equipped with five shelves, fork pockets, handlebars, order picker attachment and four polyurethane swivel casters.

Technical specifications

Category: Flow Shelf

Transportation method: Manual, Order Picker

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 55 inch

Levels: 5

Load capacity: 992 lbs

Load Capacity per Level: 441 lbs

Width: 41 inch

Caster size: 5 inch

Caster Type: Polyurethane

More info

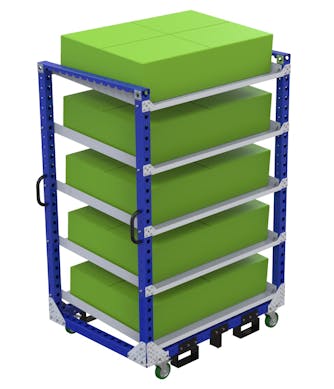

This shelf cart is designed for material presentation. It is equipped with five flow shelves which are most commonly used to hold bins, totes and boxes that are fully loaded with materials or tools. This cart is equipped with two handles for manual transportation and four forklift guides so it can also be transported by forklifts. This cart comes equipped with four polyurethane swivel casters.

Parts included
FlexBeam STS - 1820 mm 8 Q-001-1291
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1050 mm FE 4 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexPlate™ 14 Q-002-1001
FlexPlate™ half 4 Q-002-1369
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Fork Tunnel US - 80 mm 4 Q-005-0431
Triangle Joint 8 Q-005-0483
64 mm FlexBeam™ Collet 42 Q-005-1426
M6 x 20 K6S 10.9 Round Head (black) 16 Q-006-1018
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 56 Q-006-1042
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 44 Q-006-1132
Locking Nut M8 15 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Self Tapping Screw M6 Torx H60 x 16 116 Q-006-1384
Handle Bar 210 mm M8 2 Q-015-1037
