Q-100-1377

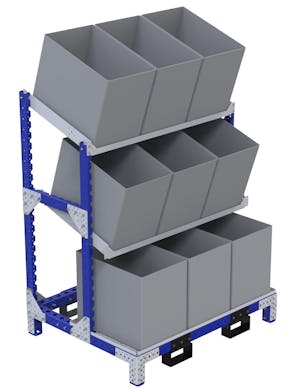

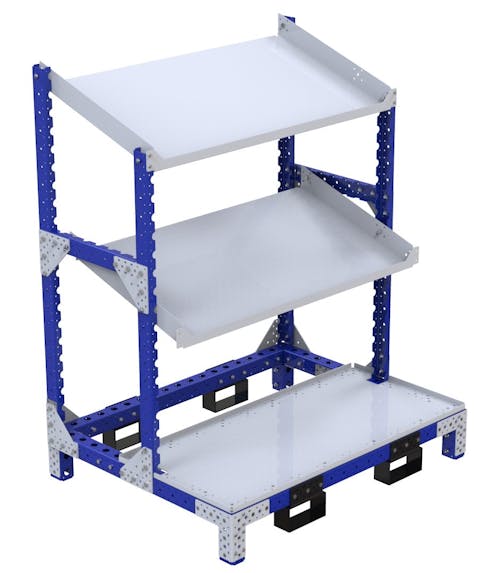

Flow Shelf Cart - 1050 x 1330 mm

Flow shelf rack equipped with two shelves and a deck. The rack is also equipped with fork pockets.

Technical specifications

Category: Flow Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

Length: 52 inch

Levels: 3

Load capacity: 595 lbs

Load Capacity per Level: 198 lbs

Width: 41 inch

More info

Flow shelf rack used for storing and transporting totes and boxes on the upper levels and pallets and larger containers on the bottom level. The rack is equipped with fork pockets for forklift transportation

Parts included
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 4 Q-002-1162
FlexPlate™ half 2 Q-002-1369
Collet - 35 mm 8 Q-005-0028
L Bracket Joint 4 Q-005-0031
Fork Tunnel EU - 80 mm 6 Q-005-0396
Triangle Joint 10 Q-005-0483
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 38 Q-005-1426
Hex Head - M10 x 25 mm 28 Q-006-1041
Locking Nut M10 94 Q-006-1042
M6 Washer 4 Q-006-1076
Hex Head - M10 x 90 mm 40 Q-006-1132
Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 50 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 40 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 4 Q-006-1502
FlexBeam FE - 1050 mm 2 Q-021-1050
