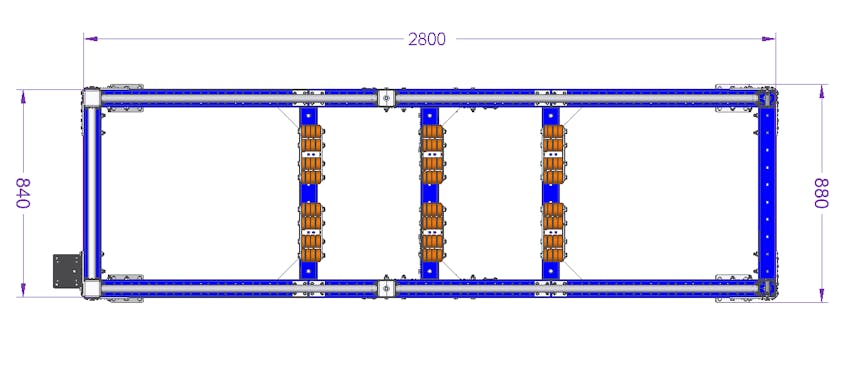

Cylinder Cart - 2800 x 840 mm

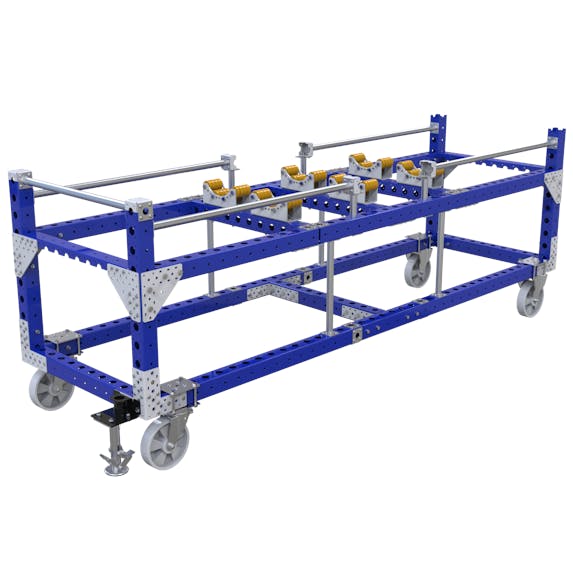

Push cart for two long cylinders which rests in the polyurethane roller cradles. The cart is equipped with a handlebar, floor brake and nylon swivel casters.

Technical specifications

Category: Standard

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Width: 33 inch

Length: 110 inch

Load capacity: 1499 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Cylinders

More info

This cart was designed to store and transport two long cylinders or other long similar parts. The cylinders rest on the polyurethane roller cradles which protects the parts from being damaged and allows you to rotate them while on the cart. The cart is also equipped with a handlebar, floor brake and four nylon casters.

Parts included
FlexTube™ 700 mm 1 Q-000-1002
FlexTube™ 420 mm 4 Q-000-1270
FlexQube 6 Q-001-1078
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 700 mm 8 Q-001-1307
FlexBeam™ 840 mm FE 6 Q-001-1405
FlexBeam™ 700 mm FE 12 Q-001-1407
FlexBeam 1820 mm STS FE 4 Q-001-1508
FlexPlate™ 30 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Guide Wheel 72 Q-004-0042
Guide Wheel 24 Q-004-0043
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
US Floor Brake - 200 mm 1 Q-004-1613
L Bracket Joint 4 Q-005-0031
Spring Threaded Tube Connectors 12 Q-005-0469
Triangle Joint 14 Q-005-0483
Cylinder Roller Attachment - 215 x 90 mm 6 Q-005-0687
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 52 Q-005-1426
Hex Head - M10 x 25 mm 9 Q-006-1041
Locking Nut M10 116 Q-006-1042
Hex Head - M10 x 95 mm 6 Q-006-1088
Hex Head - M10 x 90 mm 55 Q-006-1132
Hex Head - M10 x 100 mm 24 Q-006-1302
Extra Low Head - M10 x 90 mm 19 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 336 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 15 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Outer Tube (No Plate) - 172 mm 2 Q-025-0172
Outer Tube (No Plate) - 1144 mm 2 Q-025-1114
Outer Tube (No Plate) - 1464 mm 2 Q-025-1464
