Q-100-1145

Rack For Bases - 1330 x 1190 mm

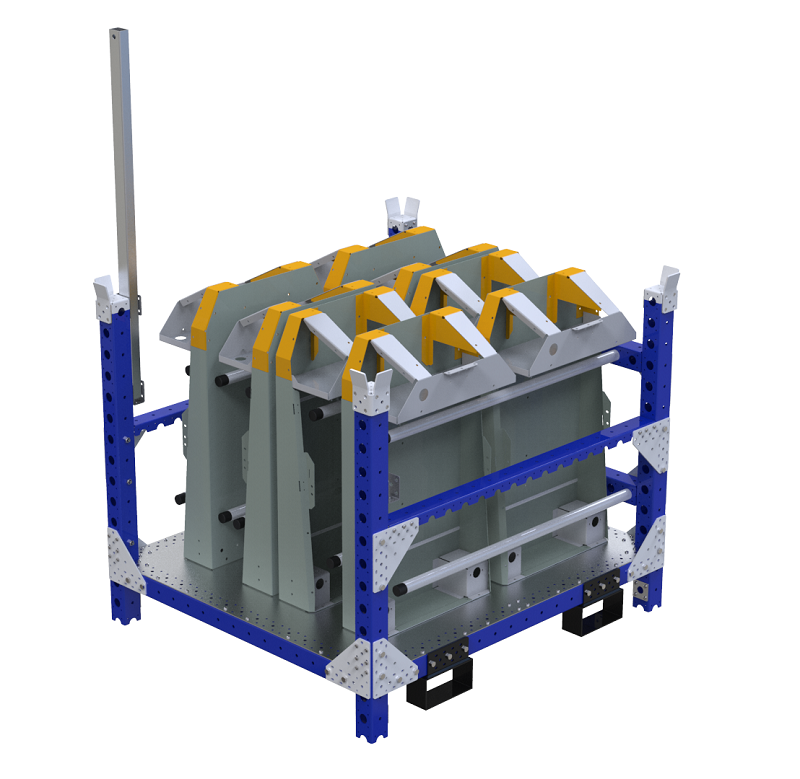

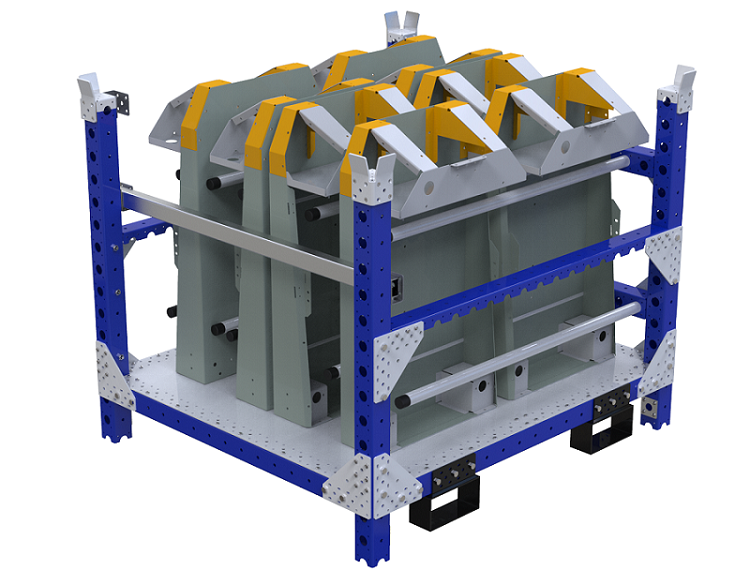

Rack used for storing and transporting large plates and panels. Equipped with a swingable stop, stacking guides and fork pockets.

100% free. No commitment.

Automotive 496 lbs
load capacity

Rack For Bases – 1330 x 1190 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Category	Specialized Carts
Transportation method	Manual
Industry	Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy
Length	52 inch
Width	47 inch
Load capacity	496 lbs

More info

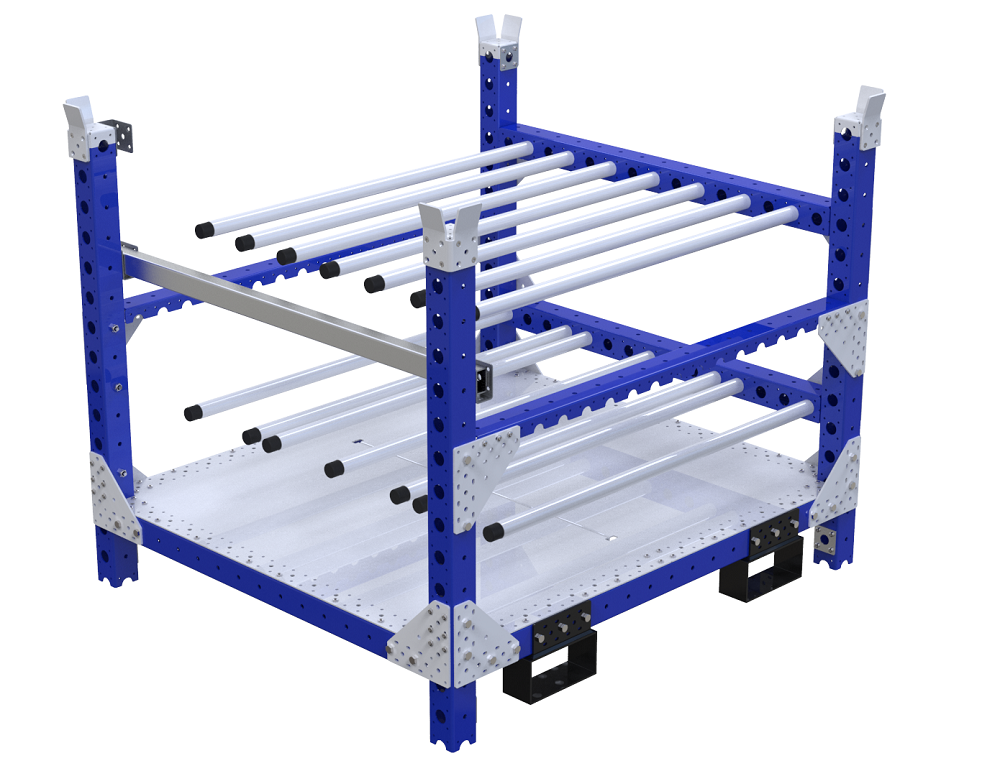

Rack used for storing large plates or panels. The plates would be stored between the tubes which are covered in plastic to prevent the parts from being damaged. In the front we find a bar which prevents the parts from falling out during transportation which then can be folded up allowing the operator to slide out the parts. The rack is also equipped with stacking guides allowing for up to three racks to be stacked on top of each other as well as fork pockets.

Parts included

FlexQube 4 Q-001-1078

FlexBeam™ 1050 mm 8 Q-001-1302

FlexBeam™ 1190 mm FE 6 Q-001-1400

FlexBeam™ 1050 mm FE 8 Q-001-1402

FlexPlate™ 15 Q-002-1001

Flexplate™ M10 10 Q-002-1162

L Bracket Joint 4 Q-005-0031

M10 - Collet 40 mm 1 Q-005-0397

Daughter locking/ Rotation plate 3 Q-005-0400

Cylindrical magnet w.threaded rod - 32 mm 2 Q-005-0410

Corner pallet guide w. bend - 5 mm 4 Q-005-0426

Fork Tunnel US - 80 mm 4 Q-005-0431

Spring Threaded Tube Connectors 14 Q-005-0469

Triangle Joint 16 Q-005-0483

Flexible Vinyl Push - On Round Caps 14 Q-005-0728

Plastic Tube - 1024 mm 14 Q-005-0860

64 mm FlexBeam™ Collet 30 Q-005-1426

Hex Head - M10 x 25 mm 8 Q-006-1041

Locking Nut M10 49 Q-006-1042

Locking Nut M6 2 Q-006-1050

Hex Head - M10 x 90 mm 40 Q-006-1132

Hex Head - M10 x 20 mm 4 Q-006-1232

Self Tapping Screw M6 Torx H60 x 16 192 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 24 Q-006-1385

Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 1 Q-006-1502

Half Top Plate - 1190 x 664 mm 2 Q-016-0598

US Daughter Cart Locking VKR - 1160 mm 1 Q-017-0055

Outer Tube (No Plate) - 1120 mm 14 Q-025-1120
