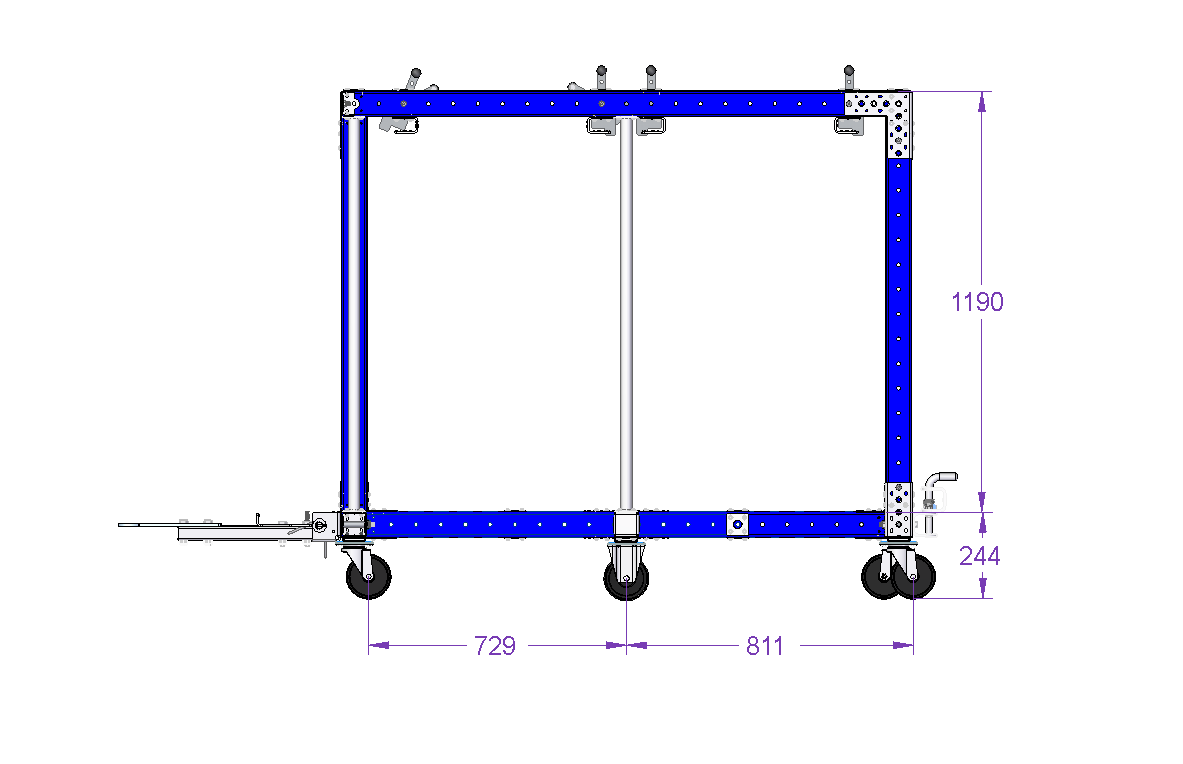

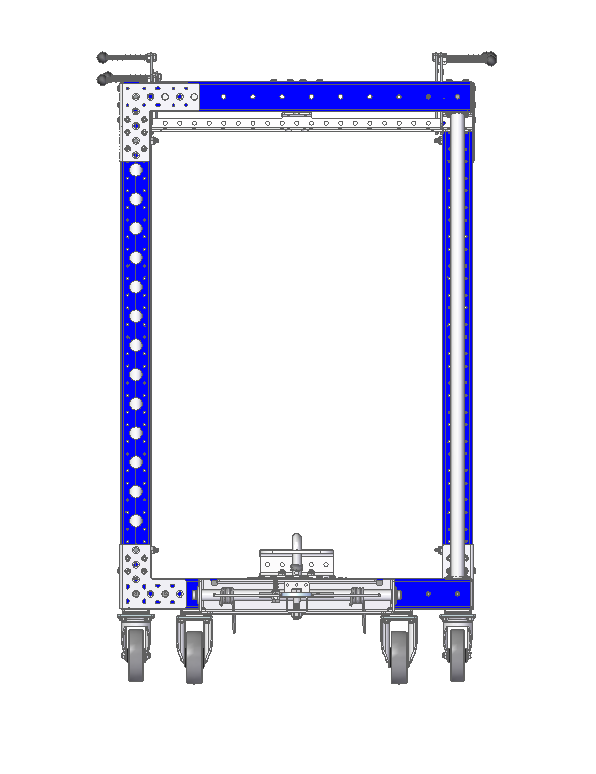

Mother Cart – 4 in 1

4 in 1 Cart without Top Shelf

Q-100-0359

Mother Cart – 4 in 1

Tuggable mother cart designed to transport X daughter carts (Q-100-0132)

Technical specifications

Transportation method: Mother-Daughter Cart, Tugger

Category: Mother Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

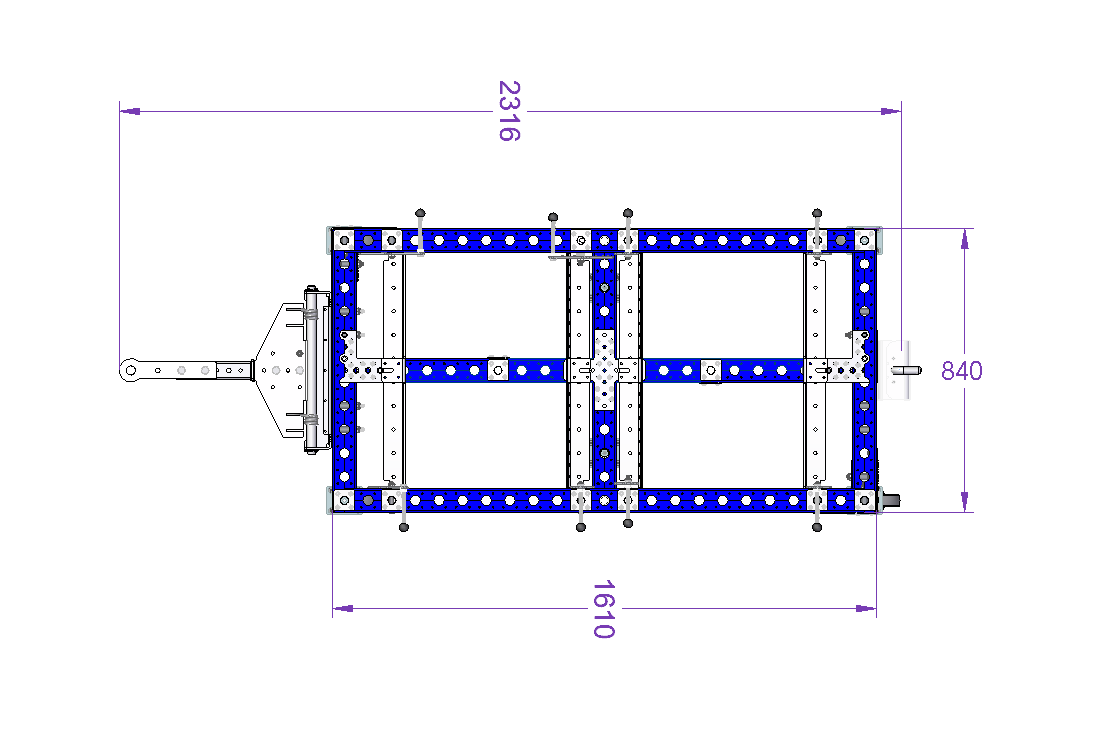

Length: 1610 mm

Width: 840 mm

Type of tow bar: Tongue and Hitch

Load capacity: 270 kg

Caster size: 125 mm

Caster Type: Polyurethane

More info

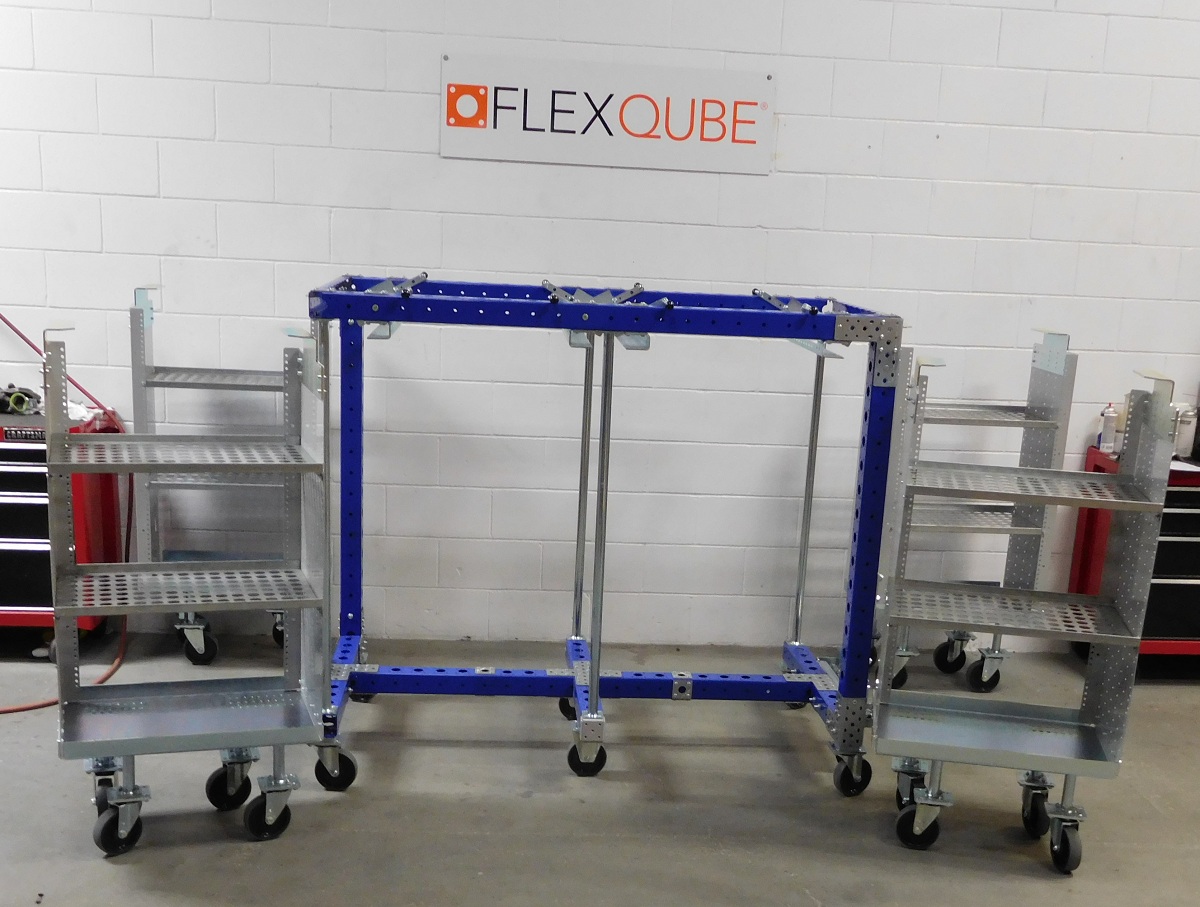

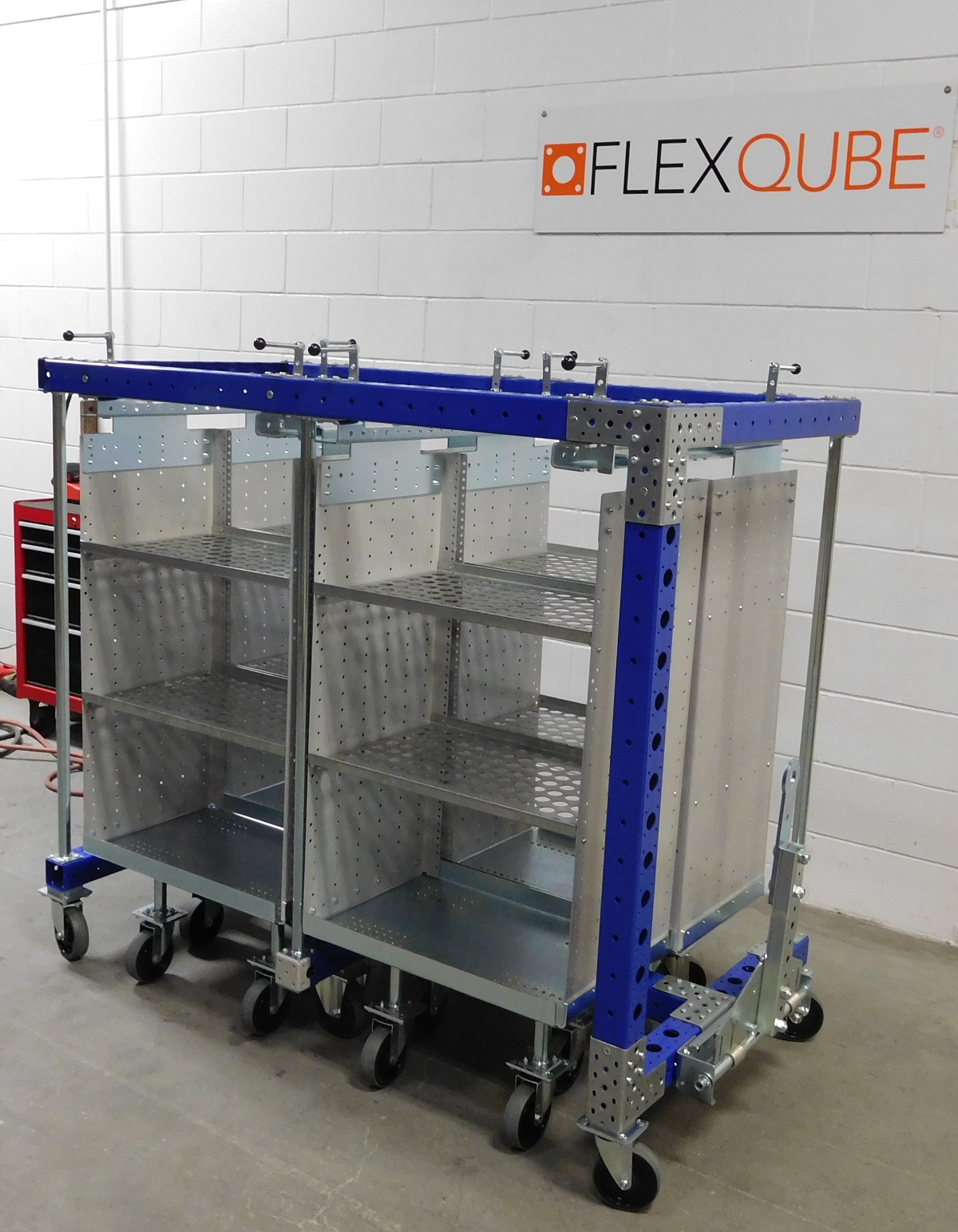

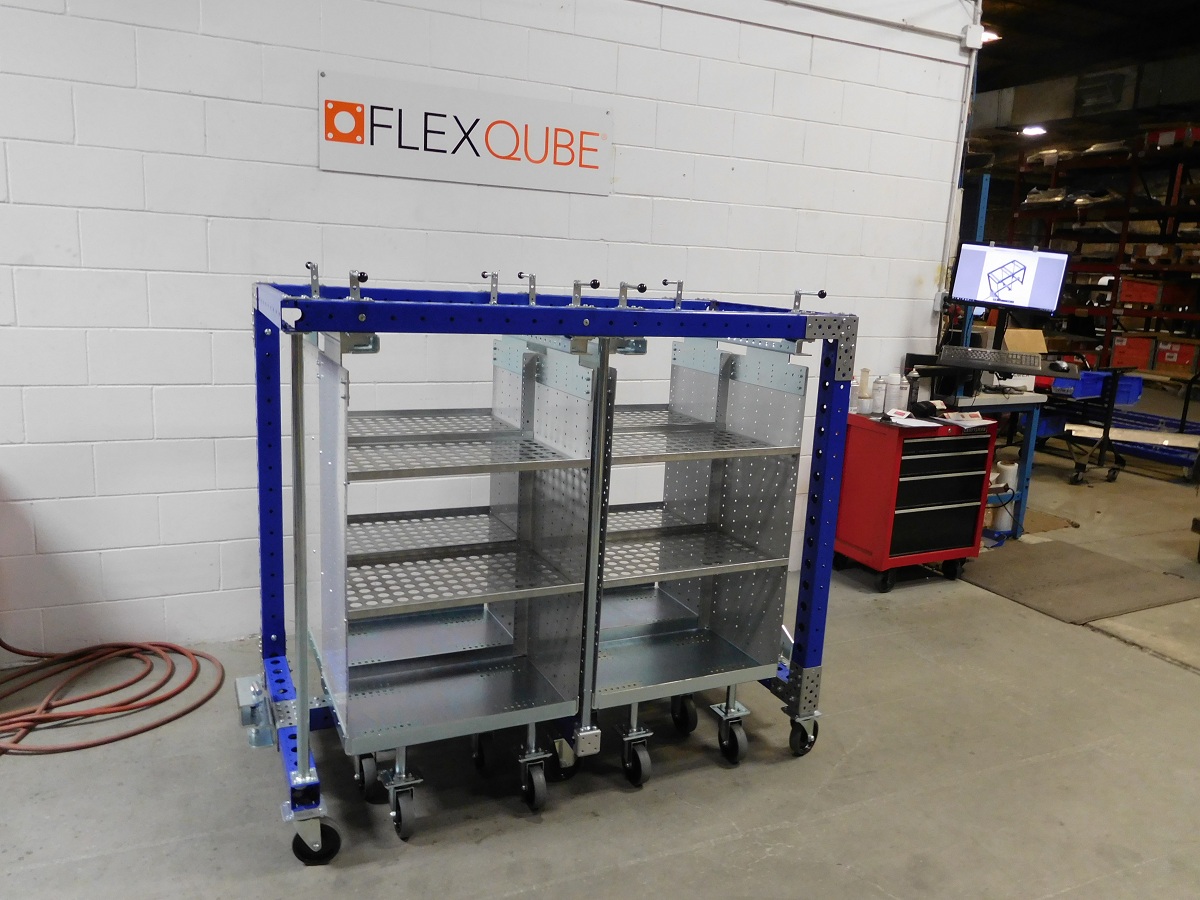

Tuggable mother cart designed to transport four daughter carts (Q-100-0312). The mother daughter concept is most commonly used in a “milk run system” meaning you use the mother cart to transport daughter carts filled with material from warehouse to assembly line and pick up empty daughter carts on the way back.

Parts included

FlexTube™ 1120 mm 4 Q-000-1258

FlexQube® 2 Q-001-1078

FlexBeam™ – 1540 mm 4 Q-001-1295

FlexBeam™ 1120 mm 4 Q-001-1301

FlexBeam™ 1050 mm 2 Q-001-1302

FlexBeam™ 420 mm 2 Q-001-1311

FlexBeam™ 350 mm 4 Q-001-1312

FlexBeam™ 840 mm FE 6 Q-001-1405

FlexPlate™ 48 Q-002-1001

Flexplate™ M10 3 Q-002-1162

125 mm Swivel Caster 4 Q-004-1363

125 mm Fixed Caster 2 Q-004-1365

Cross Joint – 240 x 240 mm 2 Q-005-0021

Daughter Cart Catcher – 840 mm 4 Q-005-0077

M10 – Collet 6 mm 8 Q-005-0105

Towing Hole 2 Q-005-1056

Spring for Tow Bar 2 Q-005-1070

Spherical Knob 8 Q-005-1146

Beam to Beam Corner Plate 2 Q-005-1356

64 mm FlexBeam™ Collet 20 Q-005-1426

Heavy Duty Joint M10 4 Q-005-1580

Wheel Attachment – 80 x 60 mm 6 Q-005-1722

Daughter Cart Locking Plate 8 Q-005-1730

Washer M20 2 Q-006-0016

M6 x 30 mm Allen Head 1 Q-006-1012

M14 x 60 mm Hex Head 4 Q-006-1036

M10 x 120 mm Fully Threaded 8 Q-006-1037

Locking Nut M14 4 Q-006-1039

M10 x 25 mm Hex Head 2 Q-006-1041

Locking Nut M10 30 Q-006-1042

Washer M10 12 Q-006-1043

Locking Nut M6 1 Q-006-1050

M10 x 30 mm Hex Head 2 Q-006-1161

Locking Nut M8 24 Q-006-1181

Nut M10 9 Q-006-1195

Countersunk Allen Head – M6 x 30 mm 24 Q-006-1196

M8 x 16 mm Countersunk 24 Q-006-1214

M10 x 100 mm Hex Head 4 Q-006-1302

M10 x 50 mm Hex Head Fully Threaded 1 Q-006-1343

Extra low head [1.5 mm] M10 x 40 mm 2 Q-006-1361

M10 x 90 mm Extra Low Head 15 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 280 Q-006-1384

M10 x 25 mm Extra Low Head Allen 4 Q-006-1410

Compression Spring for US Tow Hitch 1 Q-012-0007

US Modular Tow Bar VKR 380 mm – Lip 1 Q-017-0015

Handle for Tow Hole 1 Q-017-0022

Cotter Pin – 3.2 x 32 mm 2 Q-017-0023

Towing Lip – 28 mm 1 Q-017-1010

Tow Bar Lock Tube – 498 mm 1 Q-017-1061

Tow Attachment to Beam 1 Q-017-1080

Tow Hinge 1 Q-017-1083
