Stackable Shelf Cart – 1260 x 1260 mm
Stackable Shelf Cart – 1260 x 1260 mm
Stackable Shelf Cart – 1260 x 1260 mm
Stackable Shelf Cart – 1260 x 1260 mm
Stackable Shelf Cart – 1260 x 1260 mm
Q-100-0632

Stackable Shelf Cart – 1260 x 1260 mm

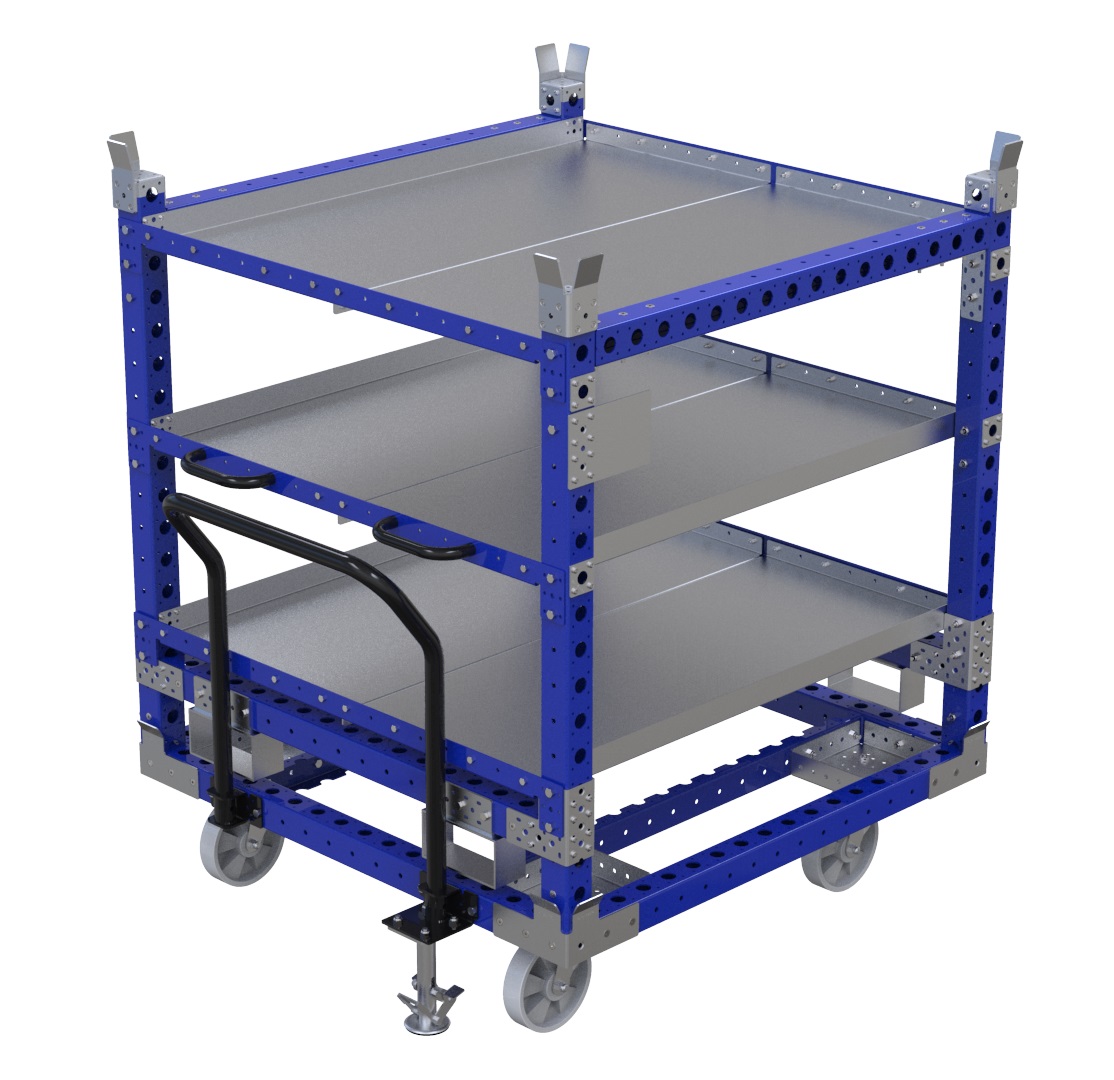

Custom designed stackable shelf rack with three shelves.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 1260 mm

Length: 1260 mm

Levels: 3

Load capacity: 450 kg

Load Capacity per Level: 150 kg

Transportation method: Manual

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This rack has three flat shelves equipped for holding totes, bins and boxes. It is equipped with an ergonomic handlebar for easier manual transportation. It can also fit into a STILL LiftRunner tugger train system for more efficient transportation.

Parts included
FlexQube® 4 Q-001-1078
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexPlate™ 20 Q-002-1001
L Bracket Joint 4 Q-005-0031
Label Plate – A5 1 Q-005-0387
Corner pallet guide w. bend – 5 mm 4 Q-005-0426
Fork Tunnel US – 80 mm 4 Q-005-0431
64 mm FlexBeam™ Collet 24 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
M8 x 20 mm Hex Head Fully Threaded 16 Q-006-1019
M10 x 25 mm Hex Head 4 Q-006-1041
Locking Nut M10 60 Q-006-1042
M10 x 95 mm Hex Head 8 Q-006-1088
M8 x 16 mm Hex Head 50 Q-006-1120
M10 x 90 mm Hex Head 28 Q-006-1132
Locking Nut M8 62 Q-006-1181
M8 Washer 32 Q-006-1183
M10 x 90 mm Extra Low Head 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 32 Q-006-1385
Handlebar 210 mm M8 2 Q-015-1037
Flat Shelf half – 1260 x 559.5 mm 6 Q-016-0290
1248 mm Angled Plate 6 Q-016-1238
