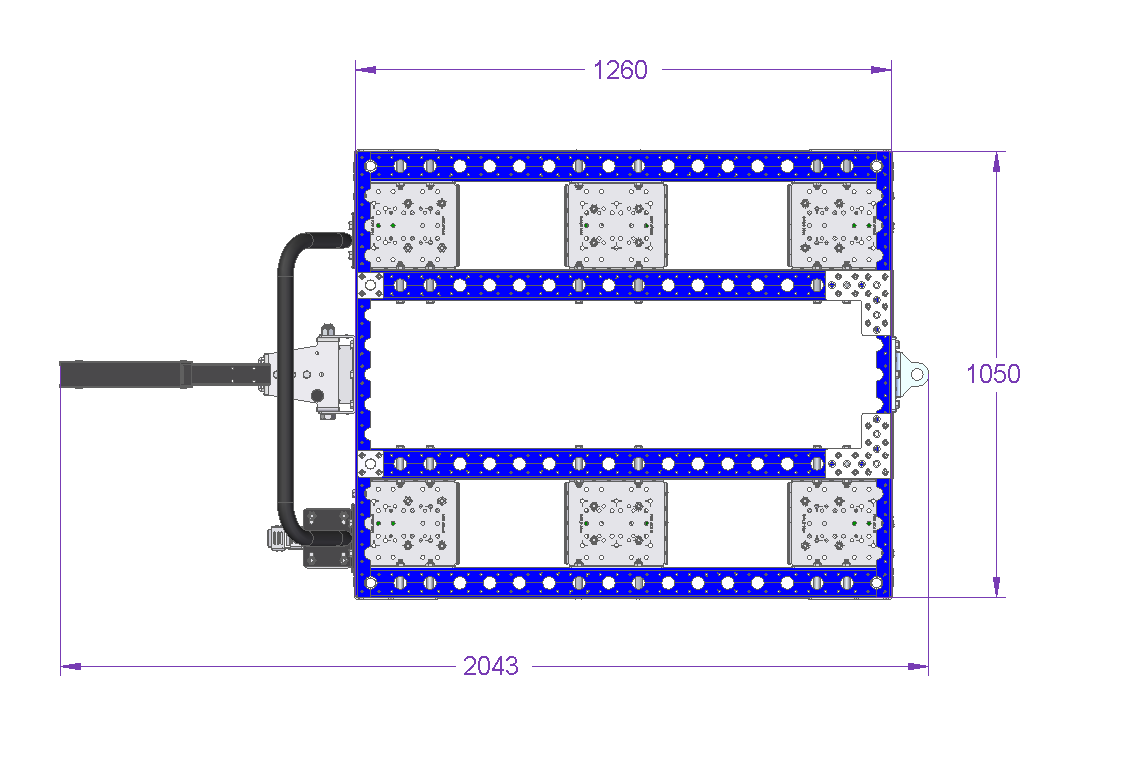

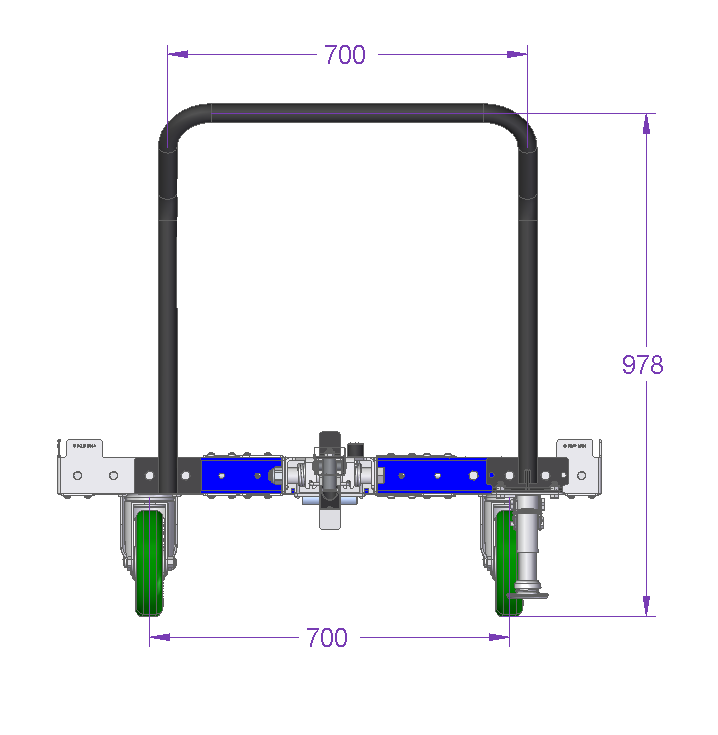

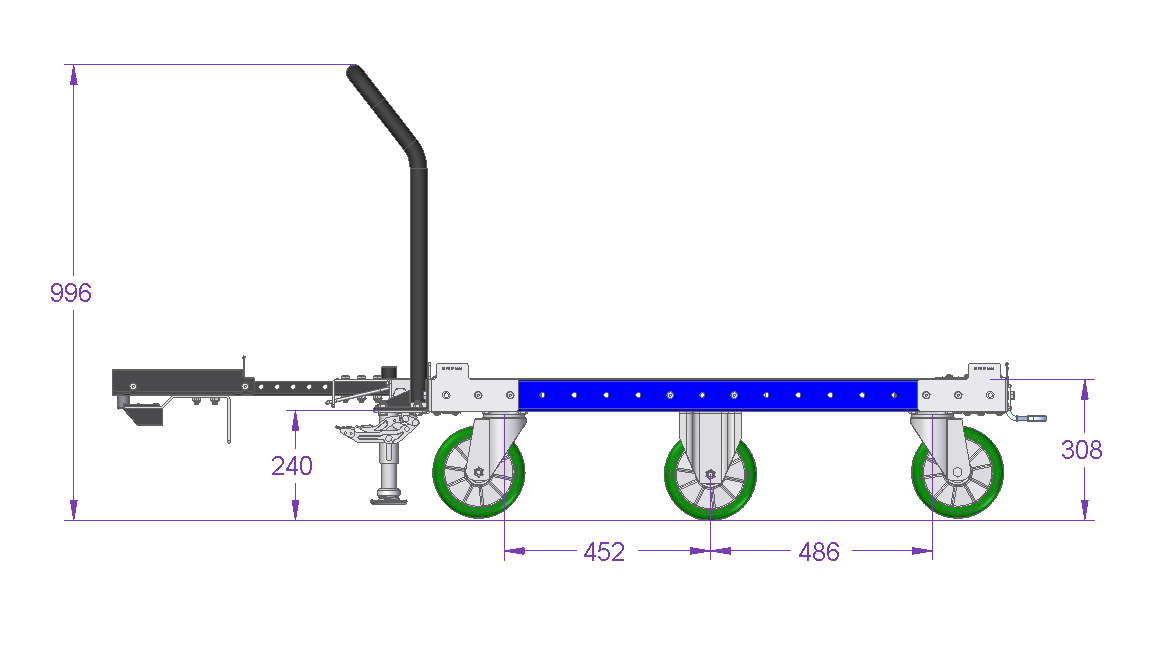

Tugger Cart – 1260 x 1050 mm

Standard tugger cart without a flat deck for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 1050 mm

Length: 1260 mm

Load capacity: 750 kg

Transportation method: Manual, Tugger

Caster size: 200 mm

Caster Type: Polyurethane

More info

This tugger cart does not have a flat deck and is used for transporting containers. This cart also comes with an attached ergonomic handlebar for easier manual transportation. There is also a foot release tow bar attached for transportation in a tugger train system. The purpose of the foot release is to improve ergonomics and reduce the amount of bending down and stretching done by operators.

Parts included
FlexQube® 2 Q-001-1078
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 1 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 2 Q-004-1065
Caster Polyurethane – 200 mm 4 Q-004-1100
Caster Polyurethane – 200 mm Fixed 2 Q-004-1101
Floor Brake LTL 200 1 Q-004-1359
37 mm collet 2 Q-005-0297
163 mm Collet – 30 x 2 mm 1 Q-005-0298
184 mm Collet – 25 x 2 mm 1 Q-005-0299
Quick Release Plate 1 Q-005-0300
27 mm collet – 15 x 2 mm 3 Q-005-0341
Spring tow bar 1 Q-005-0450
Spring cover plate new 1 Q-005-0536
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 24 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
M10 x 80 mm Countersunk 1 Q-006-0019
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M10 x 25 mm Hex Head 39 Q-006-1041
Locking Nut M10 79 Q-006-1042
M10 x 90 mm Hex Head 12 Q-006-1132
Locking Nut M8 1 Q-006-1181
M10 x 50 mm Hex Head Fully Threaded 3 Q-006-1343
M20 x 210 mm – Hex head 1 Q-006-1364
M10 x 90 mm Extra Low Head 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 82 Q-006-1384
M20 Locking Nut 1 Q-006-1405
M10 x 16 mm Low Allen Head 4 Q-006-1409
M10 x 25 mm Extra Low Head Allen 9 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 2 Q-006-1502
Spring 1.5 x 15yd x 70 1 Q-012-1141
Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060
Foot Release Locking Lip 1 Q-017-0024
Countersunk towing lock pin 63 mm 1 Q-017-0034
Hinge attachment 1 Q-017-0035
Tow bar Hinge 1 Q-017-0036
Modular Tow bar 605 mm 1 Q-017-0038
Collet 43.5 x 15 x M10 Threads 2 Q-017-0039
Modular Tow Bar Slider 1 Q-017-0053
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm – Symmetrical 1 Q-017-1066
