Pallet cart – 30 x 33 inches
Pallet cart – 30 x 33 inches
Pallet cart – 30 x 33 inches
Pallet cart – 30 x 33 inches
Q-100-1076

Pallet cart – 30 x 33 inches

Pallet push cart equipped with a handlebar and rubber bumpers to prevent carts from colliding with each another.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

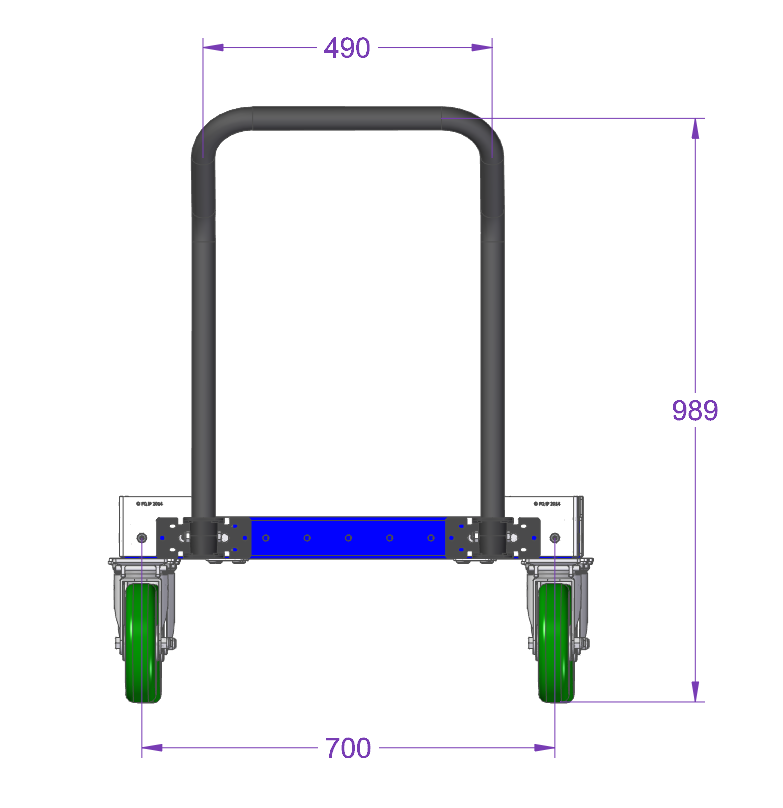

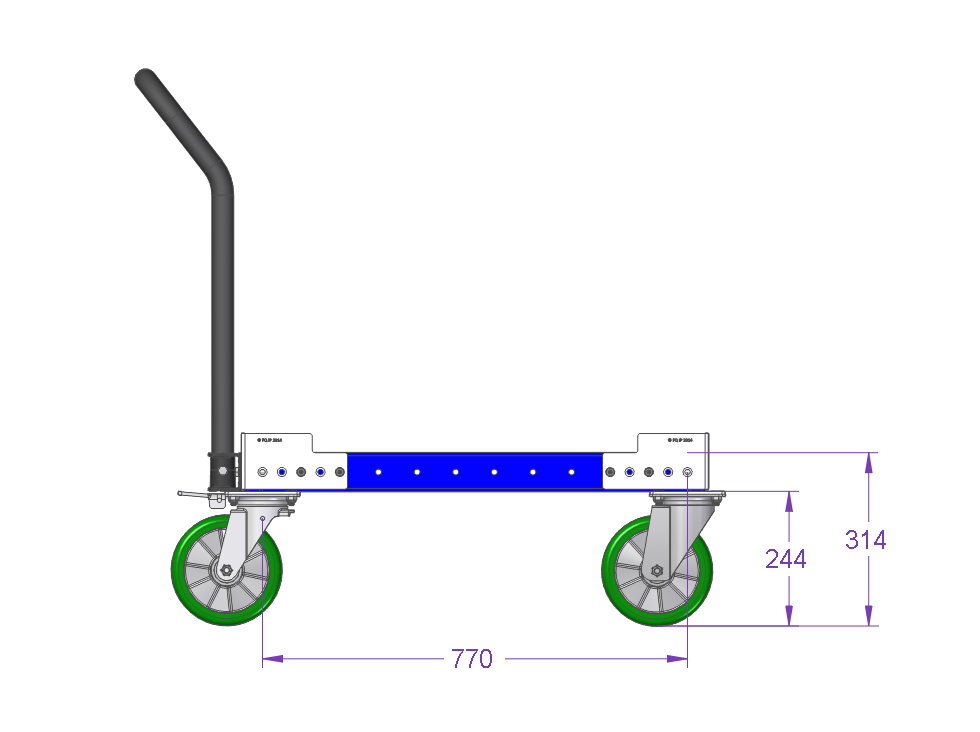

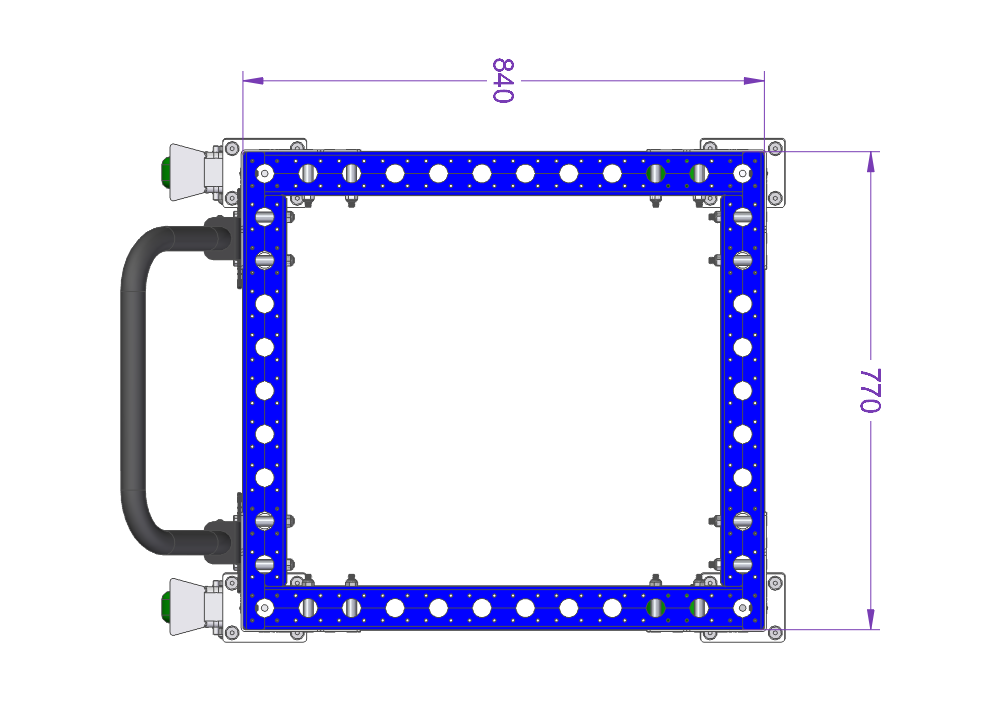

Width: 770 mm

Length: 840 mm

Load capacity: 1000 kg

Transportation method: LiftRunner Frames, Manual

Caster size: 200 mm

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This pallet push pallet cart was designed to be transported either by hand or in a frame. Since the cart is not equipped with a flat deck it can only hold one pallet/container size. The bumpers in the back have been added to prevent carts from colliding with each other when parked. It comes equipped with a handlebar and four polyurethane casters, two fixed casters and two swivel casters with brakes making it easy to manoeuvre.

Parts included
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexPlate™ 4 Q-002-1001
Caster Polyurethane Fix Brake – 200 mm 2 Q-004-1111
Caster Polyurethane – 200 mm Swivel 2 Q-004-1211
Countersunk Wheel Attachment – 105 x 77.5 mm 4 Q-005-0647
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 16 Q-005-1426
Locking Nut M10 38 Q-006-1042
Countersunk - M10 x 25 mm 16 Q-006-1082
M10 x 90 mm Hex Head 4 Q-006-1132
M10 x 90 mm Extra Low Head 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 16 Q-006-1385
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 2 Q-006-1502
Handlebar Attachment US 2 Q-015-0031
Tube for handlebar US – 490 mm 1 Q-015-0075
